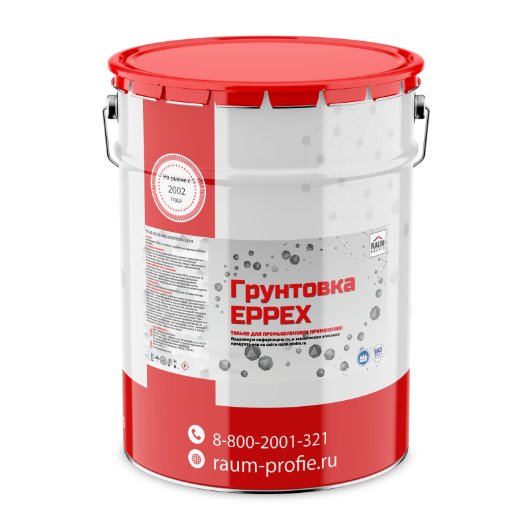

      Primer Eppex CROSS

      Order goods
      Ask a question

      EPPEX Cross primer based on zinc phosphate pigments with high anticorrosive efficiency is used as a primer or interlaminar coating in wet-on-wet systems (rapid overlap) with mechanical and / or chemical exposure. It can be used as an independent coating indoors.

      More detailed
      • Primer Eppex CROSS
      Ask a question
      • Description
      • Characteristics
      • Documentation
      Description
      TU 20.30.22-002-69372620-2020

      Description

      Two component epoxy primer for steel and concrete surfaces.

      Scope and specifics of application

      EPPEX Cross primer based on zinc phosphate pigments with high anticorrosive efficiency is used as a primer or interlaminar coating in wet-on-wet systems (rapid overlap) with mechanical and / or chemical exposure. It can be used as an independent coating indoors. It is suitable both for new metal structures anticorrosive treatment and repair work. Thick-layer application is possible in one pass. The material can also be used as a primer layer for concrete surfaces anticorrosive coatings.

      Best decorative effect of the coating in wet-on-wet systems is achieved with application of a wet film thickness up to 175 microns at viscosity of 18-25 seconds. Overlap with finishing materials should be carried out within 25-60 minutes at a temperature of 23-250C.

      Information on the material resistance to various media is available on request.

      Main fields of application: oil and gas industry, power engineering, mechanical engineering, transport construction.

      Instruction for use

      Metal surface should be abrasive blasted to grade 1 or 2 due to GOST 9.402 (Sa 2^(1/2) or Sa 2 to ISO 8501-1:2007). Cleaned surface must be free of dust and grease.

      If the quality of surface preparation decreases, the service life and its operating performance may change.

      Conditions

      Two component epoxy primer EPPEX CROSS is applied on the surface at the air temperature from +50С to +350С and  relative humidity  no more 80%.
      Surface temperature should be 30 higher than dew point.

      Application

      Blending
      The product is two component. Component А is a dispersion of pigments and anticorrosion filler in epoxy resin.  Component B is a hardener solution. Mix the contents of the containers in the supplied proportions. After mixing, use within the specified pot life.

      Mixing sequence:
      The basis (component A) is mixed with a construction mixer. Then mixed hardener (component B) is added to the basis (component A) and thoroughly mixed with a construction mixer.

      Attention! Careless mixing or incorrect ratio can lead to uneven curing and painting film properties weakening.
      Proportions 100:10 by weight
      6,5:1 by volume
      Pot life
      8 hours
      Air-free spraying
      Thinning:5-30%
      Nozzle diameter: 0,011-0,017"
      Initial pressure: 120-180 atm
      Air spray
      Operation viscosity:18-60 s
      Thinning: 10-35%
      Nozzle diameter:1,4-2,5 mm
      Initial pressure: 3,0-4,0 atm
      Brush, roller
      Can be recommended for small and hard-to-reach areas. Thin the primer depending on the working conditions when using brush.
      Thinner
      Formula thinner  EPPEX
      Cleaner
      Formula thinner  EPPEX, thinners of type Р4, Р5.
      Finishing
      Tubing, pistol and other spraying tools must be cleaned after using.
      Cleaning
      Wash the tools after using immediately. The frequency of washing depends on the amount of sprayed material, the temperature and the time since the shutdown, including any time lag.
      Characteristics
      Paint colour Grey, reddish-brown, other colours - due to customer need
      Density (comp. A), g / cm³ 1,50±0,05
      Density (comp. A+B), g / cm³ 1,41±0,05
      Shine, % Matt
      Dry residue by volume (comp. A), % 52±3
      Hardener EPPEX CROSS
      Adhesion to metals (GOST 15140), not more than 1 point
      Maximum thickness of single-layer coating at viscosity 25 sec 190 µm on dry layer, 500 µm on wet layer
      Drying time to a degree of 3 at 20°C, no more (with a wet film thickness of 100 microns) 120 min
      Minimum recommended dry film thickness, µm 80
      Maximum recommended dry film thickness, µm 300
      The minimum theoretical flow rate, g/m² 215
      МMaximum theoretical flow rate, g / m² 815
      Documentation
      Information_Primer EPPEX_CROSS (01.02.2021)
      311.1 Кб
