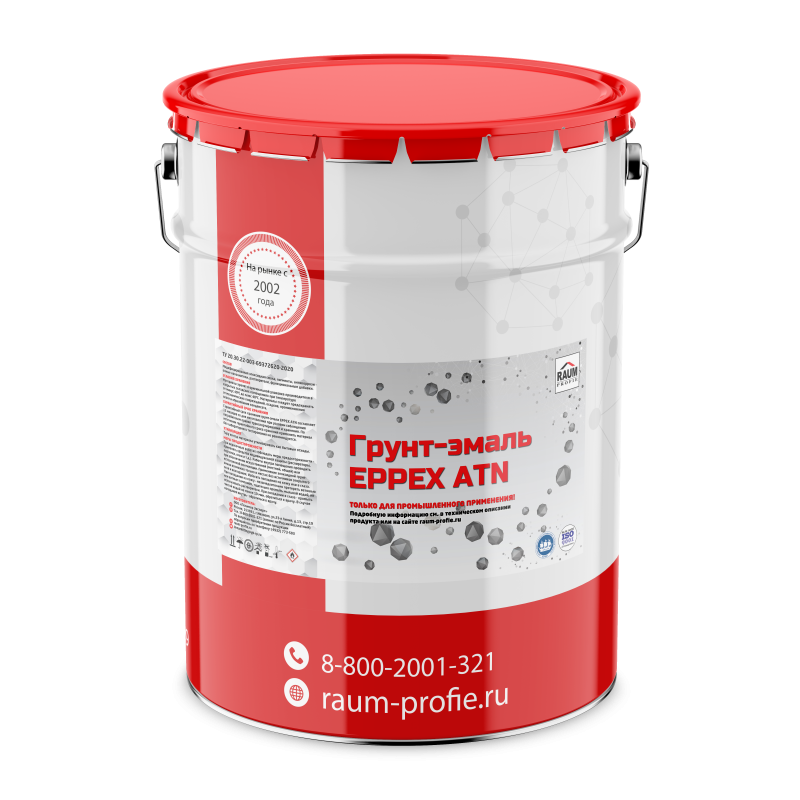

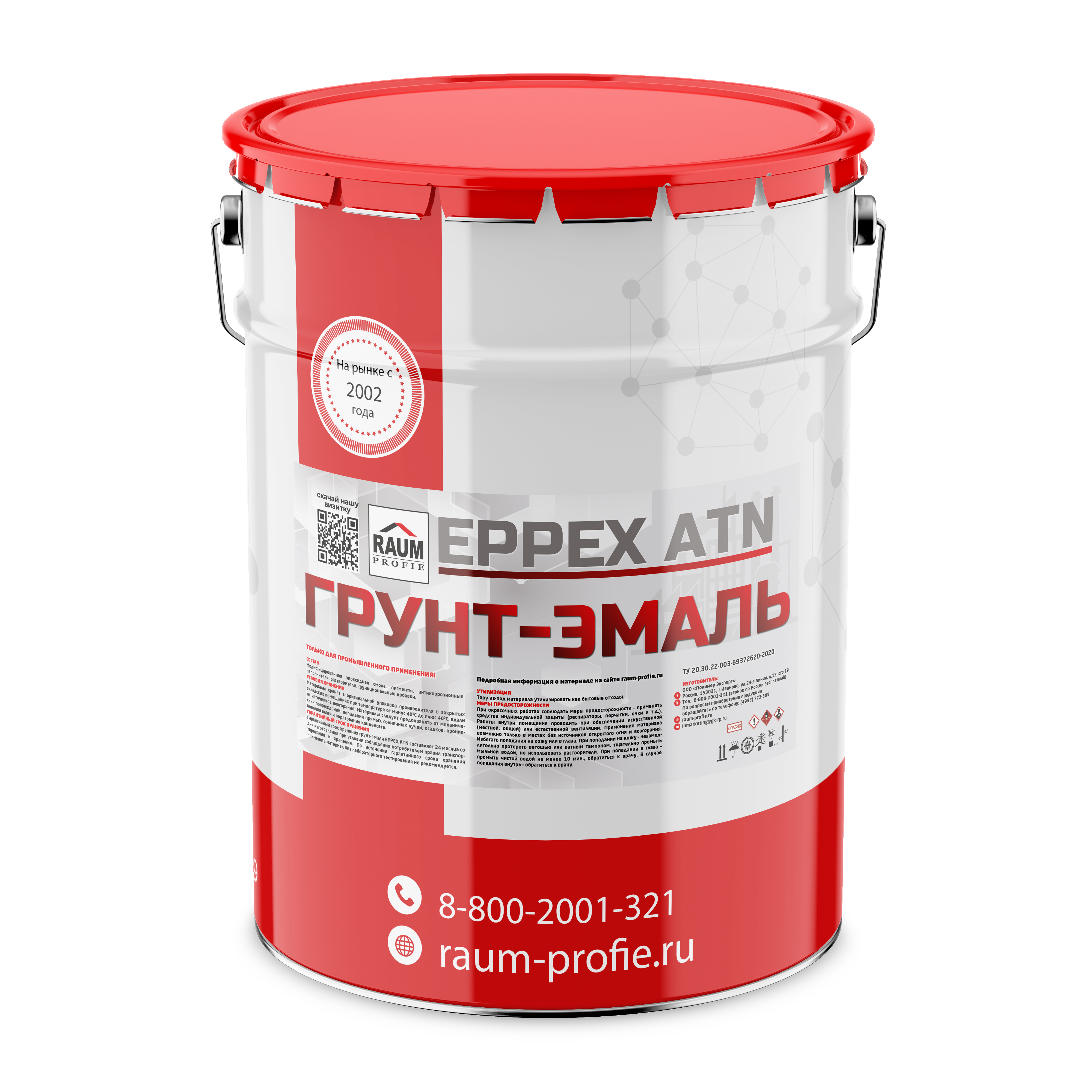

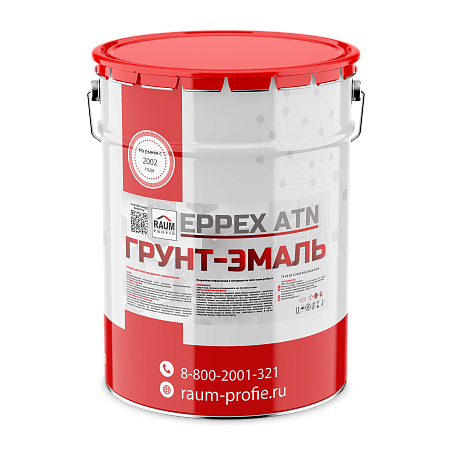

      Primer-enamel EPPEX ATN

      Compare

      The primer-enamel EPPEX ATN can be used as a primer layer, as well as an independent finishing coating in the coating system for anti-corrosion protection of metal structures, the outer surface of tanks, equipment, engineering products, metal structures.

      • chemical industry;
      • oil and gas sector;
      • power engineering.
      more details
      • Primer-enamel EPPEX ATN
      • description
      • characteristics
      • documentation
      description
      TU 20.30.22-003-69372620-2020

      Description

      Two component chemically resistant thickfilm epoxy primer-enamel.

      Scope and specifics of application

      The primer-enamel EPPEX ATN can be used as a primer layer, as well as an independent finishing coating in the coating system for anti-corrosion protection of metal structures, the outer surface of tanks, equipment, engineering products, metal structures. It has high chemical resistance and mechanical strength.

      It is used as a primer or intermediate coating for epoxy and polyurethane based coating materials in complex protection systems as well as an independent coating inside premises or under a roof.

      Information on the material resistance to various media is available on request.

      Main applications: chemical industry, oil and gas industry, power engineering..

      Instruction for use

      Metal surface should be abrasive blasted to grade 1or 2 due to GOST 9.402 (Sa 2,5 or Sa 2 to ISO 8501-1:2007). Cleaned surface must be free of dust and grease.
      During refinishing mechanical cleaning is allowed to grade 3 to GOST 9.402-2004 (St 3 or St 2 to ISO8501-1:2007; PSt 3 or PSt 2 to ISO8501-2:1994).
      Residual coating thickness should be no more than 200 microns, adhesion no less than 2 MPa to ISO 4624:2002 or no more than 3 points to GOST 15140-78.


      Conditions

      Air humidity – no more than 80%. Ambient temperature from +15°С  to +35°C. It is possible to apply at the temperature of -5 ° C, while the temperature of the primer should be at least +15 °C to provide the necessary technological characteristics. To provide curing in closed space good ventilation is needed.

      The process of applying

      Blending
      The product is two component. Component А is a dispersion of pigments and anticorrosion filler in epoxy resin.  Component B is a hardener solution. Mix the contents of the containers in the supplied proportions. After mixing, use within the specified pot life.

      Mixing sequence:
      The basis (component A) is mixed with a construction mixer. Then mixed hardener (component B) is added to the basis (component A) and thoroughly mixed with a construction mixer.

      Attention! Careless mixing or incorrect ratio can lead to uneven curing and painting film properties weakening.
      Proportions 100:14,7 by weight
      4:1 by volume
      Pot life
      at 200С – no less than 2 hours
      at 100С – no less than 7-8 hours
      Air-free spraying
      Thinning: 0-20%
      Nozzle diameter: 0,017-0,021"
      Initial pressure: 120-180 atm
      Air spraying Operation viscosity: 25-40 s
      Thinning: 15-20%
      Nozzle diameter:1,6-2,5 mm
      Initial pressure: 3,0-4,0 atm
      Cross linking at 200С 120 min
      Roller Brush    Can be recommended for small and hard-to-reach areas. Thin the primer depending on the working conditions when using brush.
      Thinner
      Formula thinner  EPPEX
      Cleaner
      Formula thinner  EPPEX, thinners of type Р4, Р5.
      Finishing
      Tubing, pistol and other spraying tools must be cleaned after using.
      Cleaning
      Wash the tools after using immediately. The frequency of washing depends on the amount of sprayed material, the temperature and the time since the shutdown, including any time lag.
      characteristics
      Paint colour Grey, white, black, tone does not specified
      Density (comp. A), g / cm³ 1,6±0,1
      Density (comp. A+B), g / cm³ 1,5±0,1
      Shine, % Matt
      Dry residue by volume (comp. A), % 85±5
      Adhesion to metals (GOST 15140), not more than 1 point
      Maximum thickness of single-layer coating at viscosity 25 sec 400 µm on wet layer
      Minimum recommended dry film thickness, µm 100
      Maximum recommended dry film thickness, µm 200
      The minimum theoretical flow rate, g/m² 188
      МMaximum theoretical flow rate, g / m² 375
      documentation
      wq9ewj6ta26nhoke1gvespwmy30l4lc4
      372.7 Кб
